Basic Info.
Model NO.
NMC967VS
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
3 Axis CNC Milling Machine Manufacturer Nmc-50vs V
Guide Way Type
Xy Axis Linear& Zaxis Slide
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Retai
Voltage
380V 50Hz and Can Changed as Customer′s Request
Brand Name
Xinzhe
Video Outgoing-Inspection
Provided
Processing
Metal Vertical Milling Machine
Controlling Mode
CNC System
Spindle Speed
8000/6000rpm
Exported Country
Russia, SA, Indian, Germany, Argentina and So on
OEM
Can Produced as Costume′s Request
Protection
Full Protection
Ballscrew Type
Taiwan Hiwin Ballscrew
CNC Control System
GSK, Fanuc, Mitsubishi, Knd, Siemens, Xinzhe
Local City
Nanjing China
Transport Package
Suitable for Sea Shipping
Specification
3300*2500*2700
Trademark
XINZHE
Origin
Nanjing, China
HS Code
84571010
Production Capacity
200sets/Year
Product Description

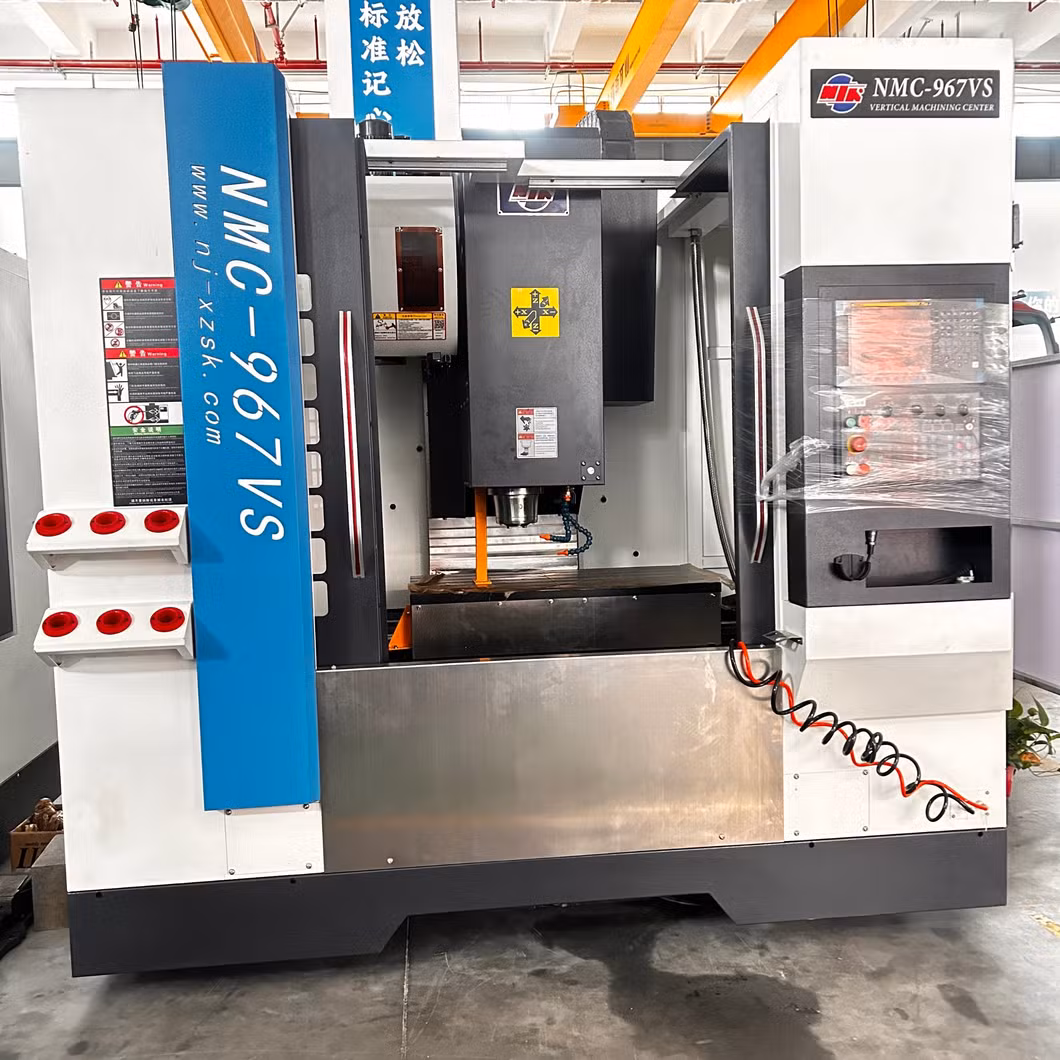

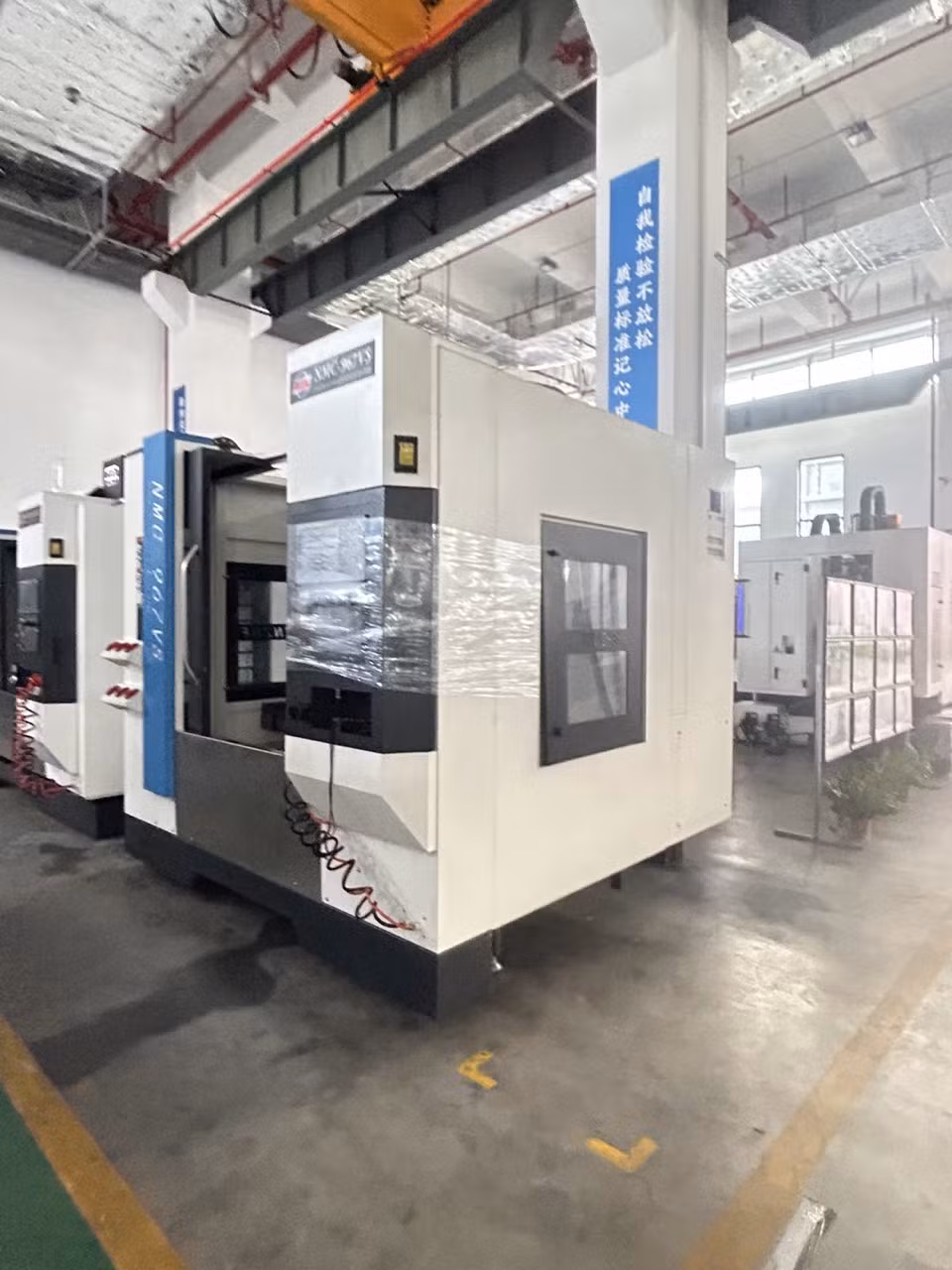

1.CNC Machining Cutting Machine Aluminum Milling Center
DESCRIPTION
Machine tool features The main shafts all adopt wide-area high-torque spindle motors with outstanding advantages such as wide constant power range, large output torque, low noise, maintenance-free, high speed, and low failure rate. Cooperating with the high-rigidity integrated spindle unit, the heavy-duty cutting capability of the machine tool has been greatly improved, and the output torque of the spindle is twice that of ordinary models. The main structure of the machine adopts modularization, a strong and closed box structure design, with good overall rigidity and strong heavy-duty cutting capability X/Y axis heavy-duty roller linear guideway.
FEATURE
1. Adopt Taiwan HIWIN or PMI line rail, and the width of the Y and Z axis rails is up to 45mm.
2. The ultra-wide base is as stable as Mount Tai.
3. The double-layer arm structure of the force column increases the rigidity by 1.5 times.
4. The X-axis sliding seat has a super-large span, and the "herringbone"-shaped column design is as stable as Mount Tai.
5. The three-axis adopts Taiwan's external diameter 40mm C3 grade screw rod, and the three-axis adopts NSK original bearing (3062), which is pre-tensioned to prevent thermal displacement.
6. High rigidity BT spindle, ring spray design.
7. The machine tool parts belong to the famous brand of famous factory, and the top configuration in the industry.
2. The ultra-wide base is as stable as Mount Tai.
3. The double-layer arm structure of the force column increases the rigidity by 1.5 times.
4. The X-axis sliding seat has a super-large span, and the "herringbone"-shaped column design is as stable as Mount Tai.
5. The three-axis adopts Taiwan's external diameter 40mm C3 grade screw rod, and the three-axis adopts NSK original bearing (3062), which is pre-tensioned to prevent thermal displacement.
6. High rigidity BT spindle, ring spray design.
7. The machine tool parts belong to the famous brand of famous factory, and the top configuration in the industry.
FEATURE
| Model Item | FANUC 0i-MF |
| NMC-967VS | |
| Workable size(L*W) mm | 1100*600(1200*600) |
| T-slot(No.-W×D)mm | 5-18*90 |
| Max. Worktable loading kg | 3000 |
| The dis. From Spindle center to Beam guideway mm | 680 |
| The plane dis. From spindle end to worktable mm | 100-800 |
| X/Y /Z axis travelling mm | 900/600/700 |
| X/Y/Z guideway type | Linear Rolling Guide |
| X/Y/Z fast move speed m/min | 24/24/24 |
| Cutting feed speed range mm/min | 10000 |
| X/Y/Z servo motor Power kW | 3/3/4.7 |
| Spindle motor power kW | 15/18.5kW |
| Max speed of spindle r/min | 4500 |
| Tool magazine capacity/form | 24 |
| Shank form | BT50 |
| Max weight of tool kg | 15 |
| Max diameter/length of tool mm | Ø105,Ø200/320 |
| Exchange tool time(Tool to Tool) Sec | 3 |
| Exchange tool type | Side-mounted mechanical arm |
| X/Y/Z axis position accuracy mm | ±0.005 |
| X/Y/Z axis repeat position accuracy mm | ±0.003 |
| Air pressure kg/cm | 6~8 |
| Electricity demand kVA | 20 |
| Machine size(L×W*H) mm | 2600*2400*2550 |
| Machine weight kg | 8800 |
MAIN ACCESSORIES

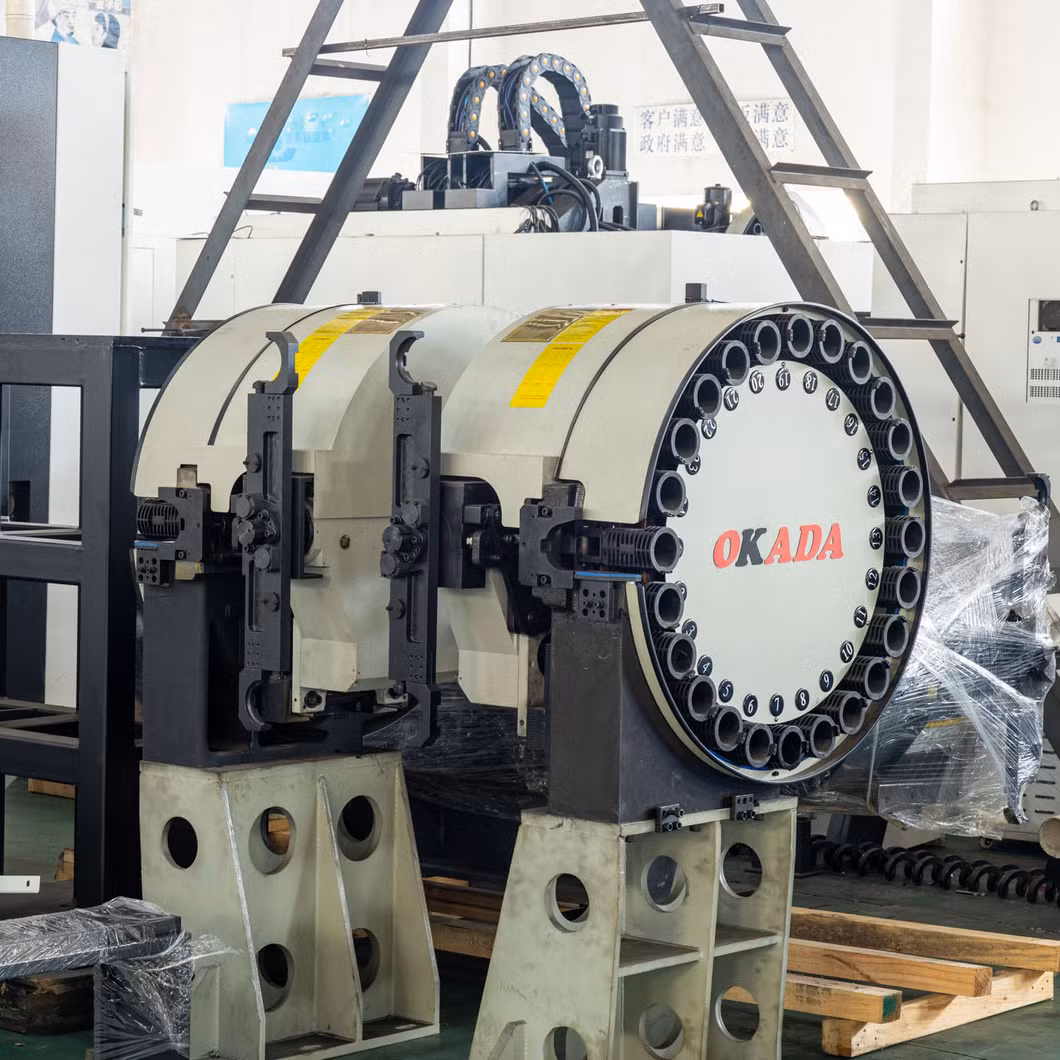

| No. | Name | Qty. | Manufacturer | Remark |
| 1 | CNC Control System | One set | FANUC | FANUC-OI-MF |
| 2 | Spindle servo motor | One set | FANUC | |
| 3 | X,Y,Z servo motor | Each for one set | FANUC | |
| 4 | Spindle front bearing | One group | FAG | |
| 5 | Spindle rear bearing | One group | FAG | |
| 6 | X,Y,Z axis bearing | Each for one set | NSK | 30TAC62 |
| 7 | X,Y,Z axis ball screw | Each for one set | HIWIN/PMI | Ø40*P16*C3 |
| 8 | X axis liner guideway | Two pcs | HIWIN/PMI | 45 |
| 9 | Y axis liner guideway | Two pcs | HIWIN/PMI | 45 |
| 10 | Z axis liner guideway | Two pcs | HIWIN/PMI | 45 |
| 11 | Spindle Unit | One set | Taiwan | BT50/150 |
| 12 | Tool magazine | One set | Taiwan | 24 |
| 13 | Cutting fluid pump | One set | Shanghai | 4-60-750W |
| 14 | Automatic lubrication system | One set | Japan | 2L |
| 15 | Knife cylinder assembly | One group | Sino-Japanese joint venture | |
| 16 | Main pneumatic components | One set | AirTAG | |
| 17 | main electrical components | One set | Schneider | |
| 18 | Spindle belt | One group | GATES | |
| 19 | X,Y,Z shaft coupling | Each for one set | NBK | |
| 20 | Heat exchanger | One set | Chinese |
STANDARD ACCESSORIES
| 1 | 24 disc tool magazines | 5 | Working light | 9 | Electric cabinet heat exchanger | 13 | Foundation screws and pads |
| 2 | Workpiece Cooling System | 6 | Tri-color warning light | 10 | Network transmission and CF card function | 14 | Tools and Toolboxes |
| 3 | Automatic lubrication system | 7 | cleaning air gun | 11 | Rigid tapping | 15 | Iron chipping disc and chip storage box |
| 4 | Spindle blowing device | 8 | Spindle output water | 12 | Fully enclosed protective cover & Double spiral chip | 16 | Iron cutting disc and chip storage box |
RANDOM DOCUMENTS LIST
| No. | Name | Specification and remark | Qty. |
| 1 | Packing list | 1 | |
| 2 | Certificate of Inspection | 1 | |
| 3 | Machine Tool Mechanical Manual | 2 | |
| 4 | Machine Tool Electrical Manual | With electrical schematic | 2 |
| 5 | CNC System Certificate/Guarantee | 1 | |
| 6 | System factory parameter table | 1 | |
| 7 | CNC system data | Operation/programming/maintenance/parameters | 2 |
| 8 | Tool Magazine User Manual | 1 | |
| 9 | Automatic Lubricating Device Manual | 1 |
2.WORKING CONDITION AND SERVICE
MACHINE TOOL ENVIRONMENT
Power supply: 3-AC 380V±10% 50Hz±1Hz Altitude: ≤1500mAmbient temperature: 5~45° Relative humidity: ≤85%
Environment: no harmful and corrosive gas, liquid, dust; no strong vibration, strong magnetic field, strong radiation
MACHINE TOOL ACCEPTANCE CRITERIA AND PROCEDURES
1. Precision of machining center: check and accept according to relevant national standards GB/T18400-2010 or Q/XZ03-2015 (for checking geometric accuracy, working accuracy, standard cutting test pieces, etc.).
2. Check and accept according to the relevant technical agreement, factory documents and configuration list signed by both parties.
3. For the machine tool with special configuration, the acceptance is divided into two parts: pre-acceptance and final acceptance:
Pre-acceptance: In accordance with the relevant content of the technical agreement and the manufacturer's factory inspection documents, the manufacturer and the user will jointly conduct an acceptance check at the manufacturer's factory, and both parties will sign and approve the acceptance, and the equipment is ready for delivery; for those that the user cannot come to the manufacturer for acceptance , can be regarded as approved pre-acceptance;
Final acceptance: at the site of use by the user, after installation and commissioning by the manufacturer's personnel to the user; the user provides the necessary general tools for installation and commissioning, and the main content of acceptance is to check the goods according to the factory documents, packing list, and accuracy test report , geometric accuracy testing, machine tool run-in verification, etc., and sign the final acceptance report after passing the test.
3.FACTORY WORKSHOP & CUSTOMER FACTOR
CUSTOMER FACTORY
4.Company strength
Nanjing XinZhe CNC Machine Tool Co.,Ltd. was established in 2007. Located in Guabu CNC Industrial Park, Liuhe District, Nanjing, the company is mainly engaged in the research and development, manufacturing, technical consulting, sales and service of CNC machine tools, intelligent equipment and intelligent manufacturing systems.
The company's main products include vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, vertical lathes and various special machine tools, intelligent manufacturing production lines, and intelligent manufacturing workshop planning and construction, and many other kinds of CNC products..
In addition to the production base in Nanjing, the company has established branches in Chongqing and Guangdong.
In addition to the production base in Nanjing, the company has established branches in Chongqing and Guangdong.
CNC Solution for Metal Cutting Industry
The company insists on being customer-centered and constantly innovating. From the standard vertical, horizontal, and gantry processing centers, it gradually develops a variety of high-efficiency and labor-saving automatic special machine tools and production lines to meet the processing needs of customers. Customers are spread all over the country and abroad to many countries.The company has independently developed special machines and automated
production lines for full CNC parts machining, and has made major breakthroughs in leading companies of the industry such as SINOSTEEL, SINOTRUK, and Fuhua Heavy Industries.
The company adheres to the corporate tenet of "attitude determines everything, quality makes the future", carries forward the spirit of innovation and excellence, builds a positive, dedicated and loving team, serves customers with heart and soul, and produces high-quality products!
