Basic Info.
Model NO.
GMCR3022/GMCR4022/GMCR5022
Application
Metal
Process Usage
Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Name
Gantry Machining Center
Processing Capabilities
Heavy Duty
CNC or Not
CNC
Table Width
2000mm
Table Length
3000/4000/5000mm
Transport Package
Exporting Package
Specification
48T
Trademark
Jepps
Origin
China
Production Capacity
100 Pieces/Year
Product Description
GANTRY MACHINING CENTER GMCR3022,GMCR4022,GMCR5022
| Item | UnitUn | GMCR3022 | GMCR4022 | GMCR5022 | |||
Table | Table width | mm | 2000 | 2000 | 2000 | ||
| Table Length | mm | 3000 | 4000 | 5000 | |||
| Table Load | t | 10 | 12 | 14 | |||
| T Slot(No-WxD) | / | 9-28×200 | |||||
Travel | Gantry Width | mm | 2300 | ||||
| Gantry Height | mm | 1400 | |||||
| Table Trave(XAxis) | mm | 3000 | 4000 | 5000 | |||
| Ram Travel(Y Axis) | mm | 2200(Tool Changer Travel 2700) | |||||
| Spindle Travel(Z Axis) | mm | 1000 | |||||
| Distance between Spindle Nose to Table | mm | 460×460 | |||||
Spindle | Distance between Spindle Nose to Table | / | 340~1340(OP heighten 180/250/300/430) | ||||
| Spindle Type | / | BT50/210(OPφ200) | |||||
| ZF Gearbox | / | Speed 4500r/min Ratio 4:1 | |||||
| SquareRam Spindle | / | Speed 3500r/min Ratio 8:1;2:1 | |||||
| Speed of XYZ | Rapid Speed | m/min | 10 | ||||
| Feeding Speed | m/min | 6 | |||||
XYZ Axis Type | XBallscrew | / | 8020 | ||||
| YBallscrew | / | 6316 | |||||
| Z Ballscrew | / | 5010 | |||||
| XLinear Guideway | / | Roller Guideway 55/10(Double) | Roler Guideway 55/14(Double) | ||||
| YLinearGuideway | / | Roller Guideway 55/7(OP55/5) | Roler Guideway 55/7(OP55/5) | ||||
| Z Linear Guideway | / | Box Guideway | Box Guideway | ||||
Motor Type | xYZ Transmission Type | / | XBelt Ratio2.5:1; | ||||
| / | Y Direct DriveRatio1:1; | ||||||
| / | Z Planetary Reduction Gear Ratio3:1 | ||||||
| / | (OP:XPlanetary Reduction Gear4:1;YPlanetary Reduction Gear3:1) | ||||||
| Spindle Motor Type | (N ·m) | See Torque Diagram | |||||
| Size | Weight of Machine | t | 41 | 44 | 48 | ||

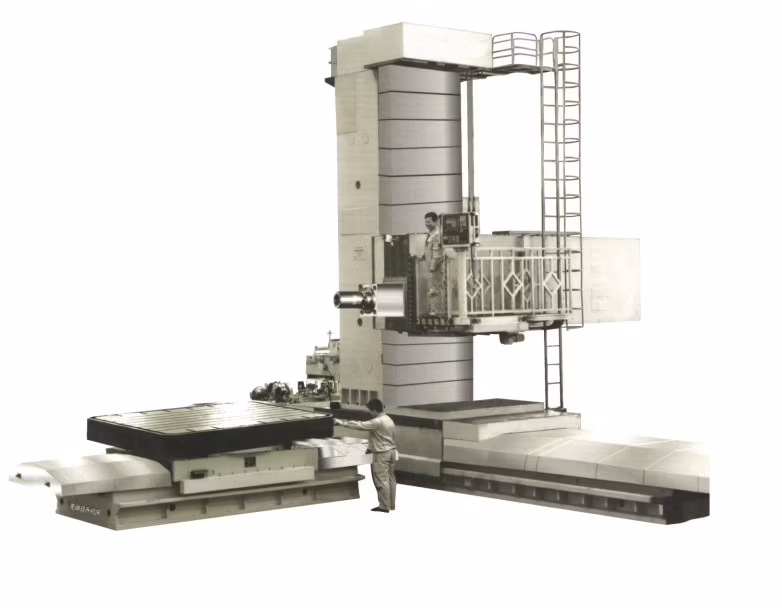

DIGITAL DISPLAY(CNC)ROTARY MILLING AND BORING MACHINE MODEL TX(K)6813
This machine is a new product with our own designing and manufacturing based on Floor Type Boring Milling Machine with D.R. 0.model no TX6213AF.
We maintain the advanced configuration of original produot,suchas separation of transmission from Japan YASKAWA servo motor drivesystem,ball grid digital display measuring,electronic hand wheeloperation,We improve the linkage of heavy rotary working table tobe fixed and equip the back column.Those characteristics make themachine to be a high applicability product.It not only have thecapacity of machining perforated box like horizontal boring machine,but also the capacity of machining large,heavy workpieces likeEloor typeboring machine,
Sicmens 840D system is equipped in this machine.It achieve tocontrol 6 axes and linkage control of 4 axes after link with CNC rotarytable.
This machine is suitable for drilling,enlarging,boring,grooving and plane iling workpieces of heavy machine,construotion,mining, motor,shipping,steel and m1litary enterprises etc.You canextend the machining range after equipped accessories.
| Boring spindle diameter mm | 130 |
| Milling arbor end diameter mm | 221.44 |
| Spindle taper | (Metric system )80(IS050') |
| Spindle speed r/min | 3-700 |
| Spindle motor power Kw | 22(frequency conversion) |
| Max.torque of boringspindle N.m | 3000 |
| Max.resisting force N | 30000 |
| Max.torqueof milling arbor N.m | 3500 |
| Table size(LXW)mm | 2000×2500(2500×3000) |
| Max.load of working tableT | 20 |
| Transverse traveloftable(X)mm | 2000(can be lengthened) |
| Vertical travel of spindle box(Y)mm | 1500(can be lengthened) |
| longitudinal travelofverticalColumn(W)mm | 1000(can be lengthened) |
| Axial travelof spindle(Z)mm | 1000 |
| Table rotary(B) | 360° |
| Feed speed mm/min Z X Y.w Br/min | (High speed is therapid speed) 4-2500 2-3000 2.5-126(rapid speed 2000) 0.0009-0.04(rapid speed 0.7) |
| Overall dimenslons(LXWXH)mm | 7050X6010X4720mm |
| Weight T | 40 |

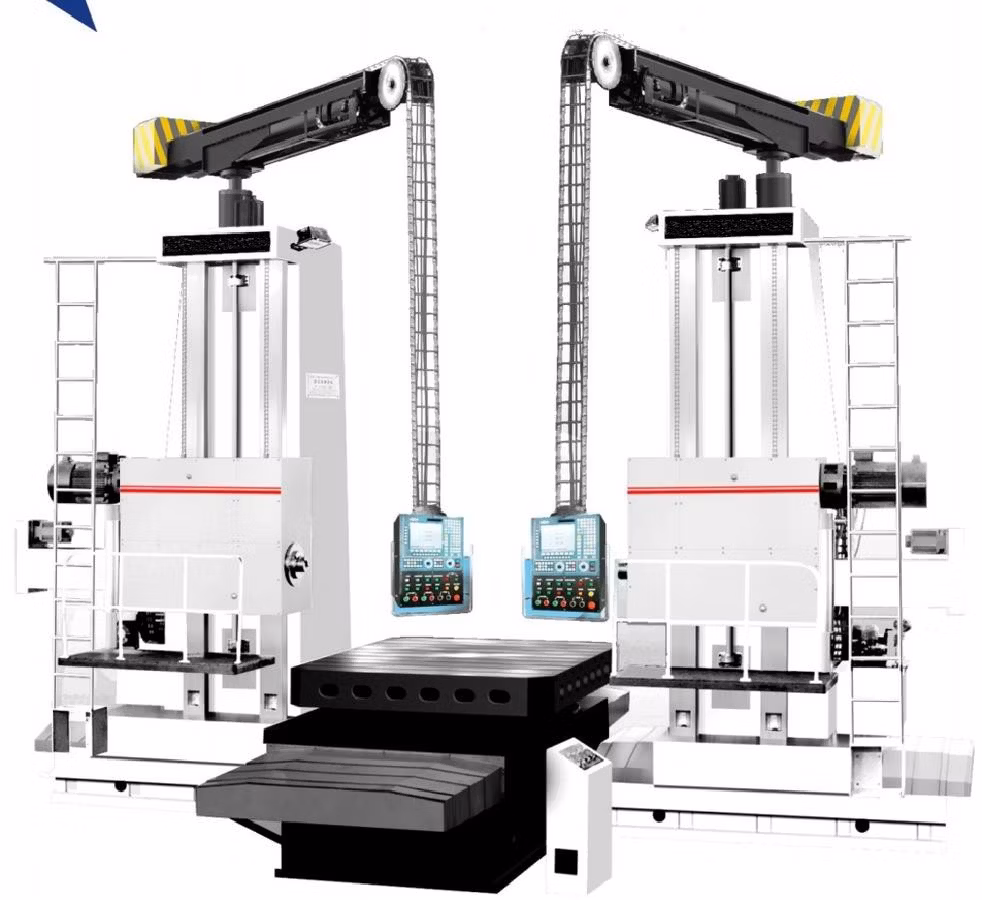

CNC OPPOSITE-FACE HORIZONTAL MILLING& BORING MACHINE TKJ6913X2
Main Use and Structure Features:It is an opposite-face horizontal and planming type miling &boring machine with two set of CNC system.The working table is mechanically-driven and the transverse moving can be positioned with the help of digital display unit. This machine can be usedfor driling,hole-expanding,boring,grooving and face-miling on largework-pieces.It is widely used in the fields of engineering,mine,motormanufacturing,ship-building,steel produotion and m1litary eneineering industry.The angle miling head can be fixed on the ram,so it catperform the functions of gantry milling machine.
It is suitable for the work-piece,jts width or the holes distance>2000mm,to be machined from opposite sides.The axiality can reach 1000:0.05The various machining processes on two opposite sides can be caried on respectively according to CNC programs. It can also be usedformachiningthe various high axiality holes at two sides of work-piece.
| Spindle diameter | φ130 |
| Spindle taper | Metric system |
| Power of spindle motoi | 22frequency conversion) |
| Spindle speed | 3~700(stepless |
| Bam section size | 350x420 |
| Size of table surface | 1400x4000 |
| Transverse travel of table | 4000 |
| Vertical travel of spindle box | 2000 |
| Axialtravel of spindle | 700 |
| Ram travel | 700 |
| Longitudinal travelof column slide | 600 |
| Feed rate of spindle and ram | 1~2000 |
| Feed rate of spindle box | 2~3000 |
| Feed rate of column slide | 4~3000 |
| Feed rate of working table | 2.5~112 |
| Rapid movement of working table | 2000 |
| Max.loadon the table | 10 |
| Total power of the machine | 120 |
| Machine weigh1 | 85 |
| Overall dimension(LxWxH) | 10750x8300x5900 |
CNC OPPOSITE-FACE HORIZONTAL MILLING& BORING MACHINE MODEL TKJ6813X2
This CNC Opposite-face Horizontal Miling &Boring Machine has two sets of CNC system.Its working table can be operated mechanically.Thetransverse travel of the table can be positioned with a digital readout and the rotation of the table can be indexed and positioned at 4x90.
With a high axialty accuracy(1000:0.05),the machine has a high eficiency in opposite face machining,especilly for large scale workpiece witwidth and hole distance more than 2000mm.The various machining processes on two opposite sides can be carried on respectivelyacording toCNC programs.It also can be used in machining all types of holes.
With high requirement in axiality accuracy aligning from"0"position.Then,the workpiece can be tumed for 90°,and the machining processes onanother two sides can be finished via 4x90°positioning.
| Spindle diameter | φ130 |
| Spindle taper | metric system 80# |
| Max.axial traverse of spindle | 1000 |
| Range of spindle speed | 3~700(stepless) |
| Range of facing plate speed | 3~122(stepless) |
| Min.distance from spindle axial line to table surface | 250 |
| Vertical travel of spindle box | 2000 |
| Vin.distance from slide totable centre line | 1020 |
| Longitudinal travel of slide | 600 |
| Vertical feed speed of spindle box | 2~3000 |
| Axial feed speed of spindle | 1~2000 |
| Size of table surface(L×W) | 2000x2500 |
| Transverse travel of table | 4000 |
| Range of transverse feed of table | 2.5~105 |
| Max.load of the table | 30 |
| Total power of themachine | 110 |
| Overall dimension | 9400x8540x5002 |
| Total weigh1 | 80 |
CNC OPPOSITE-FACE HORIZONTAL MILLING & BORING MACHINE TKJ6513x2
| Model | TKJ6513X2 |
| Item | φ130 |
| Diameter of boring spindlemm | |
| Diameter of millincspindle mm | 221.44 |
| Spindle taper | Bt50# |
| Table size(L*w)mm | 6000*1400 |
| Table weight T | 10 |
| Transverse travel of table(X)mm | 6000 |
| Vertical travel of spindle head(Y)mm | 2000 |
| Axail travel of spindle(Z)mm | 1000 |
| Longitudinal travel ofvertical column(W)mm | 1200 |
CNC FLOOR-TYPE MILLING AND BORING MACHINE TKJ6216
| Model | TKJ6216 |
| Item | 160 |
| Boring spindle diameter mm | |
| Milling arbor end diameter mm | 260 |
| Spindle taper | Metric system 80# (ISO50#) |
| Axial travel of spindle(Z)mm | 1000 |
| Travel of ram(w)mm | |
CNC FLOOR-TYPE MILLING AND BORING MACHINE TKI6913
| M o d e l | |
| I t e m | TKJ6913 1 3 0 |
| Boring spindle diameter mm | |
| Milling arbor end diameter mm | 221.44 |
| Spindle taper | Metric system 80# (ISO50#) |
| Axial travel of spindle(Z)mm | 700 |
| Travel of ram(w)mm | 700 |
DIGITAL DISPLAY FLOOR-TYPE MILLING AND BORING MACHINE TX6213AF
| Model | TX6213AF | TKJ6213 |
| Item | 1 3 0 | 130 |
| Boring spindle diameter mm | ||
| Milling arbor end diameter mm | 221.44 | 221.44 |
| Spindle taper(Metic/system) | 80# | 80# |
| Horizontal travel of column(X)mm (can be extended) | 3000 | 4000 |
| Vertical travel of spindle(Y)mm box(can be extended) | 2000 | 2000 |
| Axial travel of spindle(Z)mm | 1000 | 1000 |

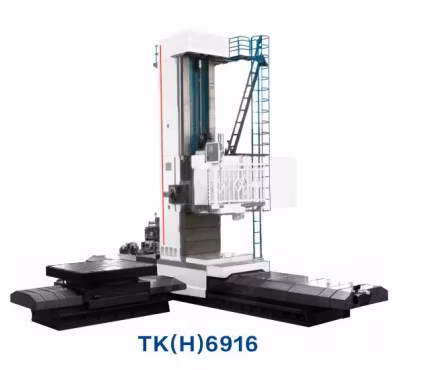

NORMAL TYPE AND CNC SERIES FLOOR-TYPE MILLING AND BORINGMACHINE

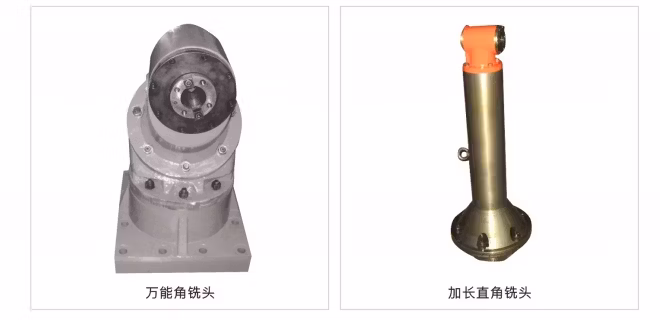

The machine of the normal type and CNC series is optimal designed which has the function of boring,drilling,cuting,miling,cuting grooveThese machine can be associated with the rotary tableand right angle milling head in order to realize five sides processing.It is the perfect equipment for machining large workpiece of metallurgy,energy,electric power,mining, engineering machine,national defenseimdustryshinbuilding and other imoustes,spindle of the machine is suppored by hgh accuracy roling bearines,.X.y.w axes adopt constant curenhydrostatic guideways that the each pump equipped with one chamber.The machine equipped with double gear anti-backlash mechanism,ballscrewdrive,spindle electro-hydraulic compensating device,thermal balance protection system. It also has the fimction of completely self-diagnostisis,sothe operation for the machine is convinient. The machine of these series can equup with l kinds angle milling head,special milling head,facing plate and other special ordered acessories.
| Model | TX6916 | TKJ6916 | TK6916 TH6916 | TK6920 TH6920 |
| Diameter of boring spindle mm | 160 | 160 | 160 | 200 |
| Diameter of milling arborend mm | 260 | 260 | 260 | 340 |
| Spindle taper | IS050 | IS050 | IS050 | ISO 60 |
| Rotary speed of spindle r/min | 2-1000 | 2-1000 | 2-1250 | 2-1000 |
| Main motor kw | 37 | 55 | 71 | 75 |
| Torque of spindle N.m | 4000 | 5000 | 6800 | 10000 |
| Ram section size mm | 480×520 | 480×520 | 480×520 | 480×520 |
| Horizontal travelof column(X)mm (can beextendedper 2 meter) | 4000 | 4000 | 6000 | 6000 |
| Vertical travel of spindle box(Y)mm | 3000/3500/4000 | 3000/3500/4000 | 3000/3500/4000 | 3000/4000/5000 |
| Travel of boring spindle(Z)mm | 1200 | 1200 | 1200 | 1200 |
| Travel of ram(W)mm | 1200 | 1200 | 1200 | 1200 |
| Range of feed speed Xmm/min Ymm/min Zmm/min Wmm/min | 2-4000 | 2-4000 | 1-6000 | 0.5-6000 |
| 2-4000 | 2-4000 | 1-6000 | 0.5-6000 | |
| 2-2000 | 2-2000 | 0.5-4500 | 0.5-4500 | |
| 2-2000 | 2-2000 | 0.5-4500 | 0.5-4500 | |
| CNC System | Servo motor drive from Yaskawa of Japan | Fagor 8055 | Siemens 840D | Siemens 840D |
| Capacity ofA.T.C.system pc. | 40/60/80 | 40/60/80 | ||
| Machine weight T | 105 | 105 | 115 | 128 |
FAQ: 1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: You can pay by T/T . You can also pay to my company business bank account.
4.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.
Why choose us ?
1. Compared with other factories, casting material which produced by our company independently is really better than the others.
2.one year guarantee for whole machine .
3.24-hours technical support by E-mail or telephone
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
