Basic Info.
Model NO.
GMC3020
Layout
Vertical
Controlling Mode
CNC
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
X Axis Travel
3000mm
Y Axis Travel
2000mm
Z Axis Travel
500mm
Distance Between Two Columns
2400mm
X Rapid Traverse Speed
15m/Min
Y Rapid Traverse Speed
15m/Min
Z Rapid Traverse Speed
8m/Min
Table Size
3000X2000mm
Max. Worktable Load
6000kg
Connection Type
Belt
Overall Dimension
8400X3800X3200mm
Machine Weight
Approx 20000kg
Transport Package
Wood CTN
Specification
10800x5800x5000mm
Trademark
JYME
Origin
China
Production Capacity
500
Product Description
Parameters:
| Specifications | GMC3020 | GMC4020 | GMC6020 |
| X axis travel | 3000mm | 4200mm | 6200mm |
| Y axis travel | 2000mm | 3200mm | 3200mm |
| Z axis travel | 500mm | 1000mm | 1000mm |
| Distance between spindle nose and worktable surface | 150-650mm | 250-1250mm | 250-1250mm |
| Distance between two columns | 2400mm | 2800mm | 2800mm |
| X rapid traverse speed | 15m/min | 12m/min | 10m/min |
| Y rapid traverse speed | 15m/min | 12m/min | 12m/min |
| Z rapid traverse speed | 8m/min | 12m/min | 12m/min |
| Cutting feed speed | X.Z axis 1-8m/min, Y axis1-10m/min | X.Z axis 1-8m/min, Y axis1-10m/min | X.Z axis 1-8m/min, Y axis1-10m/min |
| Table size | 3000×2000mm | 4000x2000mm | 6000×2000mm |
| Max. worktable load | 6000Kg | 12000Kg | 18000Kg |
| Connection Type | belt | belt | belt |
| Max. spindle speed | 3000 rpm | 3000 rpm | 3000 rpm |
| Spindle taper | ISO50 | BT50 | BT50 |
| Main motor power | 15KW | 22KW | 22KW |
| Positioning accuracy | X: 0.042mm, Y: 0.03mm, Z: 0.025mm | X: 0.042mm, Y: 0.03mm, Z: 0.025mm | X: 0.042mm, Y: 0.03mm, Z: 0.025mm |
| Repeat positioning accuracy | X: 0.03mm, Y: 0.016mm, Z: 0.014mm | X: 0.03mm, Y: 0.016mm, Z: 0.014mm | X: 0.03mm, Y: 0.016mm, Z: 0.014mm |
| Machine weight | Approx 20000Kg | Approx 48000Kg | Approx 58000Kg |
| Overall dimension | 8400×3800×3200mm | 12560×5960×5820mm | 16560×5960×5820mm |
Details:

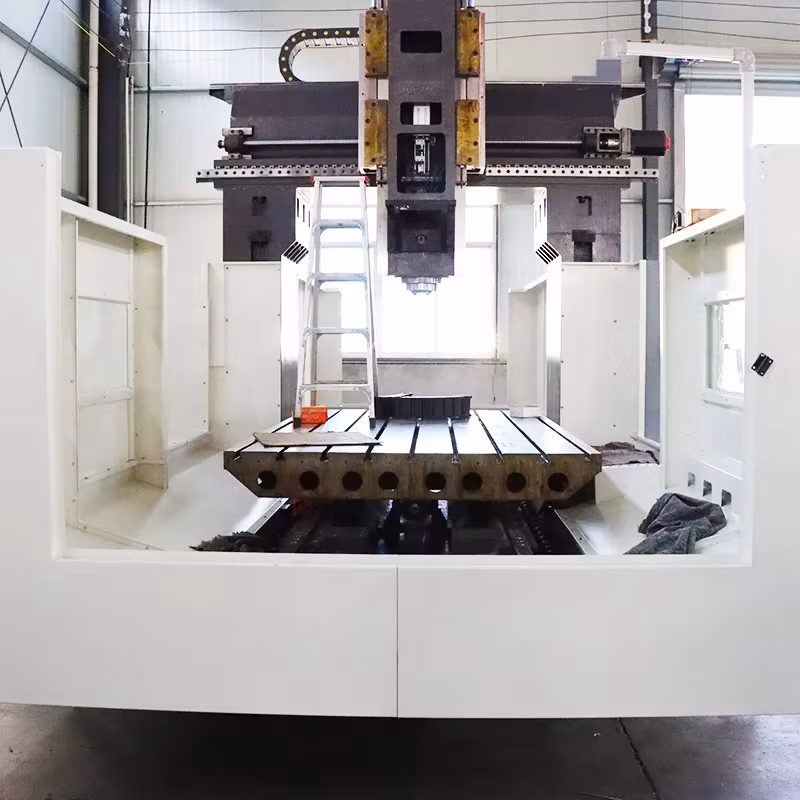

Optical machine
Precision casting, precision machining, Precision Assembly, precision testing Natural aging, thermal aging, vibration aging and other stress relief, so that more stable components, higher precision.
Precision casting, precision machining, Precision Assembly, precision testing Natural aging, thermal aging, vibration aging and other stress relief, so that more stable components, higher precision.

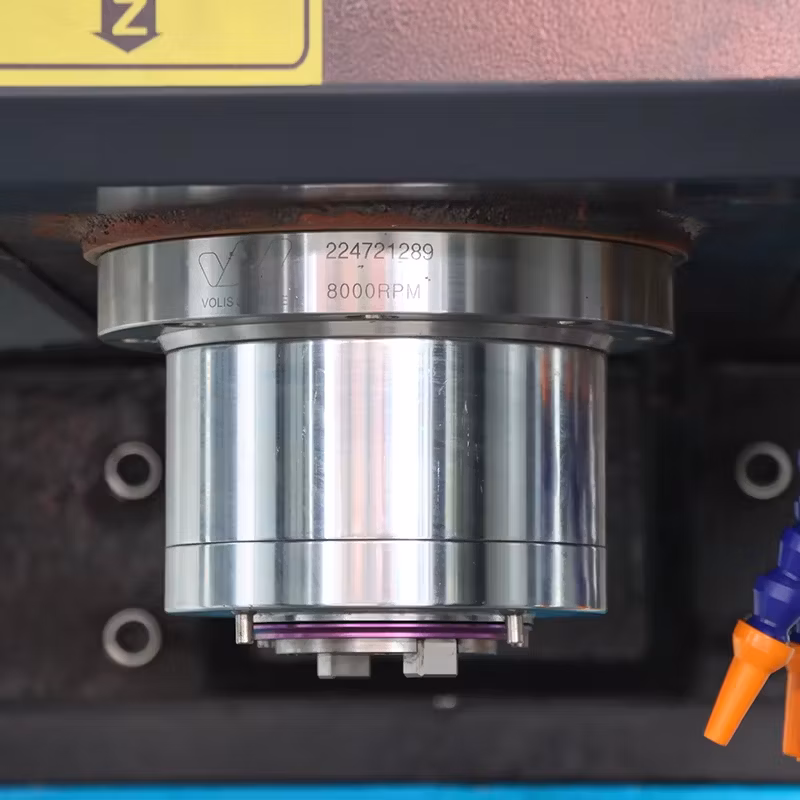

Taiwan spindle
High accuracy and rigidity, smooth transmission, low noise The lifting and lowering time is short and the operation is stable The standard configuration is 8000rpm. Available at 10000rpm or 12000rpm
High accuracy and rigidity, smooth transmission, low noise The lifting and lowering time is short and the operation is stable The standard configuration is 8000rpm. Available at 10000rpm or 12000rpm

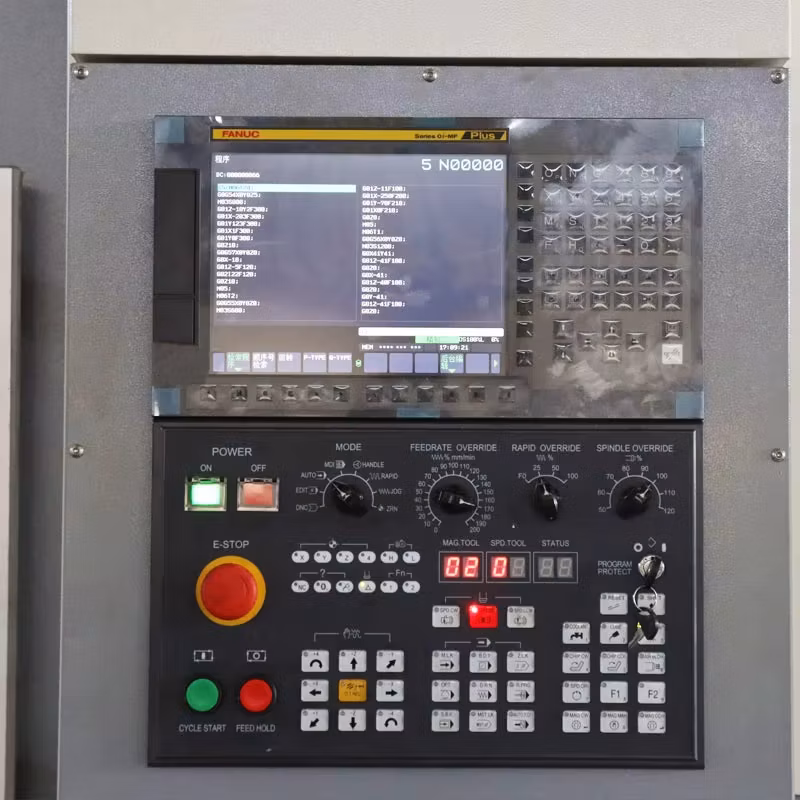

CNC control system
It can meet the various requirements of different control objects Siemens, FANUC, Mitsubishi, KND, GSK, SYNTEC and other operating systems
It can be configured according to customer requirements

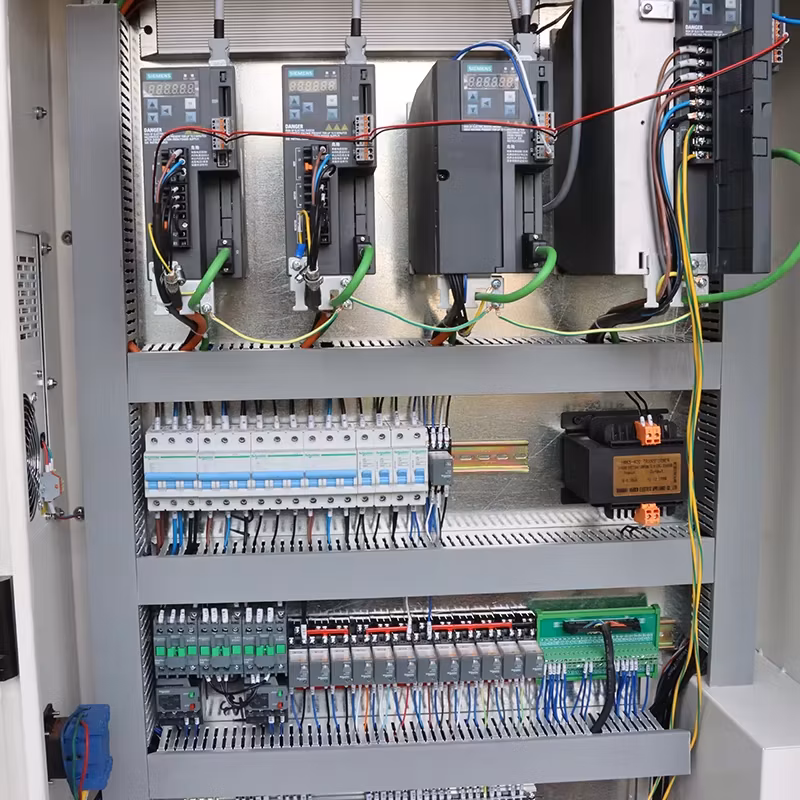

Electrical cabinet
The CNC system and drive are integrated with the same configuration, which makes the machine run more stable. The appliance uses the well-known brand Schneider-Brand or Delixi brand and is equipped with heat dissipation
The CNC system and drive are integrated with the same configuration, which makes the machine run more stable. The appliance uses the well-known brand Schneider-Brand or Delixi brand and is equipped with heat dissipation

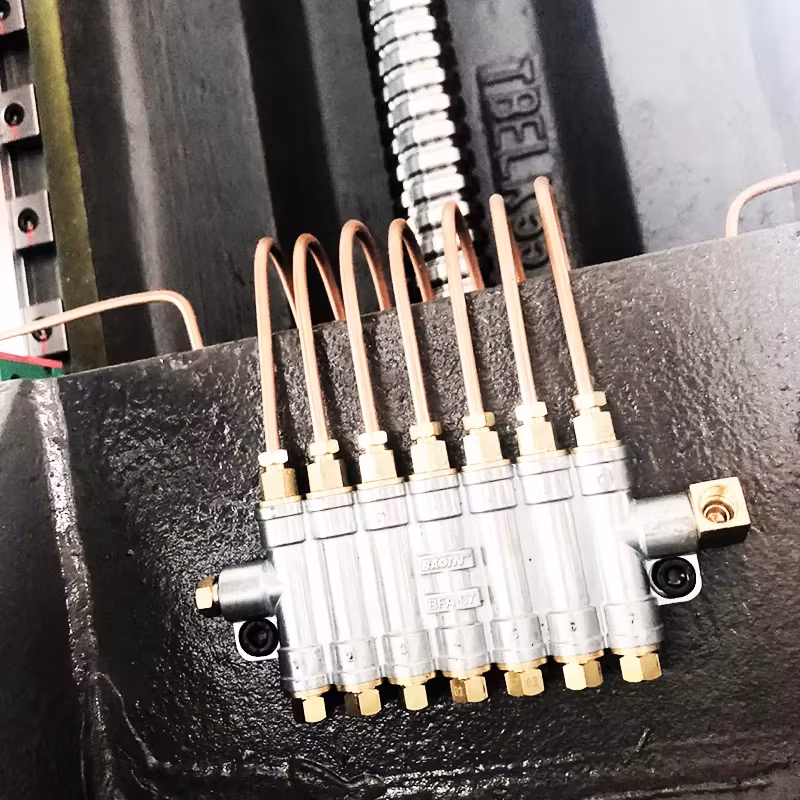

Pure copper oil circuit
Effectively reduce the gap between parts in the machine tool and improve machining accuracy and stability. Better disperse the high-temperature heat of the oil, reduce the expansion and contraction of the oil, and further improve the processing accuracy and reliability.
Effectively reduce the gap between parts in the machine tool and improve machining accuracy and stability. Better disperse the high-temperature heat of the oil, reduce the expansion and contraction of the oil, and further improve the processing accuracy and reliability.
Chizhou Jingyi Electromechanical is a professional machinery manufacturing service provider. The factory has a full range of shears, saws, lathes and other processing equipment. The product styles are complete. The products are made of high-quality materials and advanced processing technology. The quality is guaranteed. All products can provide good training and technical services. Welcome new and old customers to inquire.
