Basic Info.
Model NO.
Hlt
After-sales Service
Provided
Warranty
One Year
Transmission Type
Flexible
Automatic Production Line
Comprehensive
Certification
CE, ABS, ISO, Lr
Flexible Production
Intelligent Manufacturing
Rhythm
Non Flow Production Line
Transport Package
Polywood
Specification
customized
Trademark
HLT
Origin
Wuxi, Jiangsu
HS Code
730799000
Production Capacity
720000/Year
Product Description

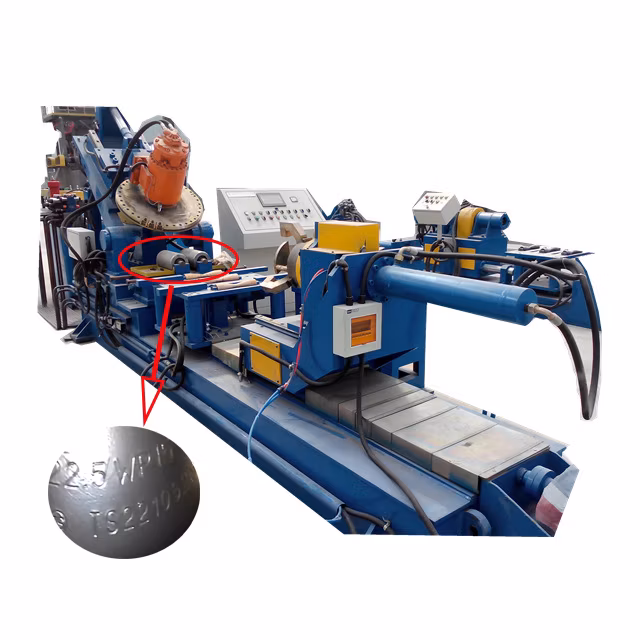

Fully automated CNC steel tube metal Hot spinning spin forming machine for high pressure cylinder manufacturing
| LTG325 | LTG406 |
| Processing diameter | DN219-325 | DN325-406 |
| Processing length | 800-2000mm | 800-2000mm |
| Processing thickness | 5-15mm | 5-18mm |
| Central height | 1100mm | 1200mm |
| Main engine power | 90kW | 144kW |
| Rolling wheel swing angle | 100° | 100° |
| Spindle speed | 700rpm | 700rpm |
| Control methods | CNC | CNC |
| Machine dimension | 1600x2000x1420mm | 1800x2000x1600mm |
| Equipment center height | 1250 mm (spindle center from the bottom plane of the fuselage) |
| Spindle motor | 144KW (DC) |
| Axial stroke of the slider | 65mm |
| Radial stroke of the slide | 17mm |
| Radial clamping force | 1200KN |
| Spindle speed | 0-600rpm adjustable |
| DC Drive | Siemens |
| Maximum axial force | 246kn |
| Maximum axial feed speed of the die | 200mm / s |
| Maximum speed of rotary wheel rotation angle | 30° / s |
| Maximum rotary wheel torque | 65KN |
| Wave Angle | 0-100 |
| Hydraulic motor | 90kw |
| Scale speed reversing valve | Italian ATOS |
| Electronic control system | Siemens 828D |
| Heating power at the pipe end | 500KW / 1000Hz |
| Pneumatic load | 6bar |
WUXI LONGTERM is the manufacturer in the field of hot spinning forming machinery in China, with a well established reputation for outstanding performance.Recognized worldwide for its proprietary design and manufacturing know how. LONGTERM has been involved in this industry since 1990. We got here on the basis of providing strong support to clients who buy our machinery. our machines have been exported to Russia, Ukraine, USA, UK, Turkey, Australia, Kenya, Egypt, India etc...
When you 'down' - our job is get you back 'up'
Servicing on our machinery has been greatly facilitated by advances in remote control software. This allows us to troubleshoot issues half way around the world and gets you up and running in time frames!
We understand what our customers need to stay competitive:
Custom quality parts
At an affordable rate
In the fastest possible
Meeting these goals requires precision in everything we do.
Servicing on our machinery has been greatly facilitated by advances in remote control software. This allows us to troubleshoot issues half way around the world and gets you up and running in time frames!
We understand what our customers need to stay competitive:
Custom quality parts
At an affordable rate
In the fastest possible
Meeting these goals requires precision in everything we do.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment;
Q: What can you buy from us?
A: All the machine for the CNG cylinder production line.
Q: Why should you buy from us not from other suppliers?
A: Wuxi Longterm Group is group corporation which are professional supplier of cable, LPG gas cylinder, steel drum, LNG and CNG
machinery with more than 25 years of experience and a strong professional R & D team
Q: What services can we provide?
A: Online technical support, On-site installation, Spare parts...
We need to know the following information to make the quotation to you:1. The technical drawing of the cylinder.
2. Daily capacity.
A: Always a pre-production sample before mass production; Always final Inspection before shipment;
Q: What can you buy from us?
A: All the machine for the CNG cylinder production line.
Q: Why should you buy from us not from other suppliers?
A: Wuxi Longterm Group is group corporation which are professional supplier of cable, LPG gas cylinder, steel drum, LNG and CNG
machinery with more than 25 years of experience and a strong professional R & D team
Q: What services can we provide?
A: Online technical support, On-site installation, Spare parts...
We need to know the following information to make the quotation to you:1. The technical drawing of the cylinder.
2. Daily capacity.
