Basic Info.
Model NO.
X6436
Type
Universal Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Chinese Precision Universal Head Milling Machine
Table Size
1320X360mm
Max. Load of Table
400kg
Table Longitudinal Travel(Manual/Auto)
1000mm/1300mm
Table Cross Travel (Manual/Auto)
290/280mm
Table Vertical Travel(Manual/Auto)
390mm
Spindle Taper
ISO50
Swivel Angle of Swivel Head
360 Degree
Main Motor
4kw
Feed Motor
1.1kw
Transport Package
Plyw/Case
Specification
1980x2020x1900mm
Trademark
UNI-TECH
Origin
Shandong, China
HS Code
8459699000
Production Capacity
100 Pieces/Month
Packaging & Delivery
Package Size
220.00cm * 200.00cm * 225.00cm
Package Gross Weight
2600.000kg
Product Description
)Chinese Precision Metal Manual Universal Swivel Head Verital Milling and Horizontal Milling Machine (X6436)
Main Features:

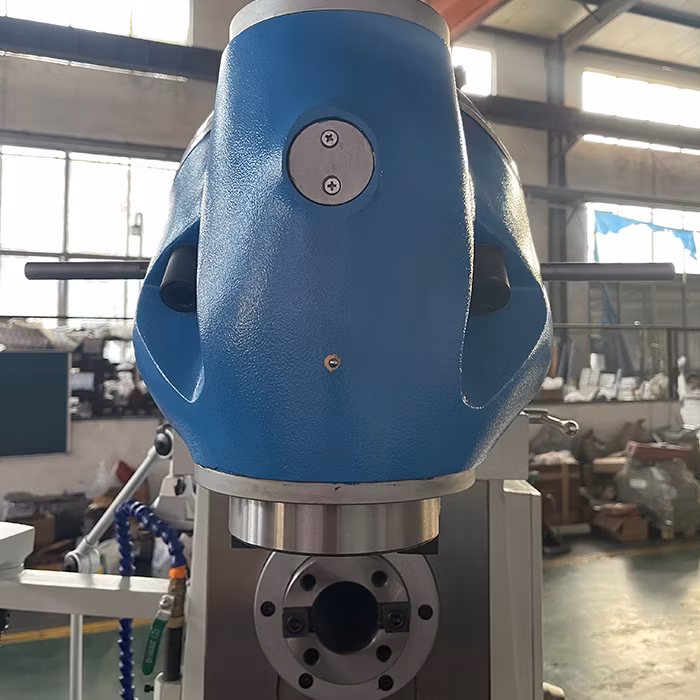

1.The machine is with universal milling head,it can swivel 360 degrees.
2.The table can swivel left and right side 45 degrees.

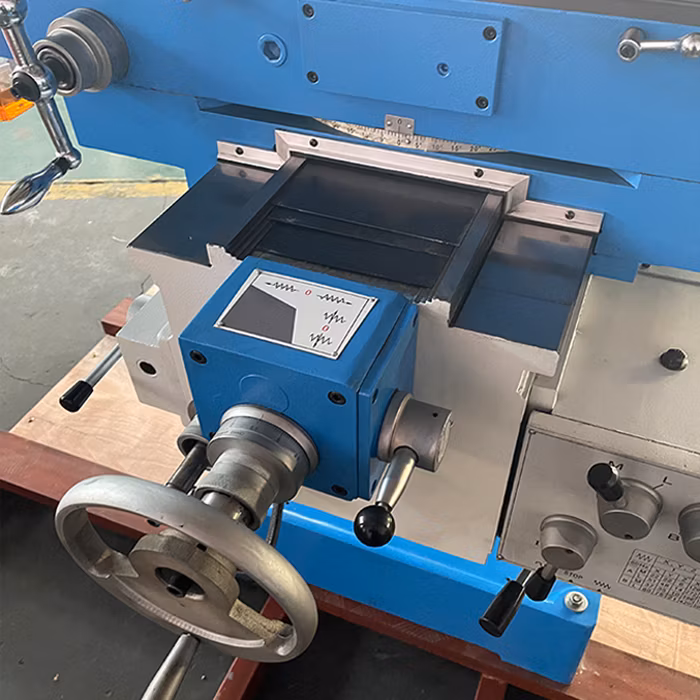

3.The machine can automatic feed on three axes controlled through one gear box.
4.The ram is movable forward and backward.

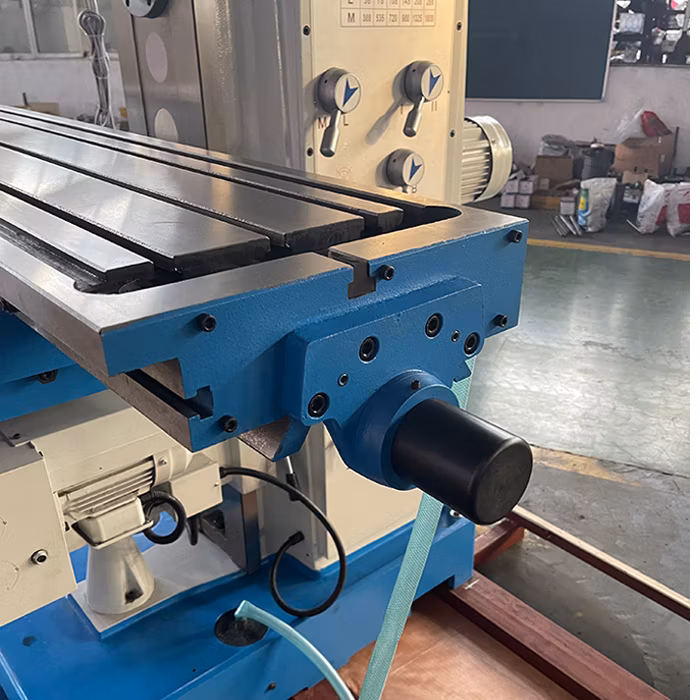

5.The table can be extended to 1600mm, and X travl is increased to 1300mm simultaneously.
6.The machine is equipped with operation panel which is convenient for the operator.
X6436 Chinese precision Universal swivel head milling machine:
Standard Accessories:
Optional accessories:
3-Axis SINO DRO
Universal dividing head
Rotary table TSL250
Machine vice
Security of the table
Security of the spindle(simple type)
Security of the spindle(advance type)
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.

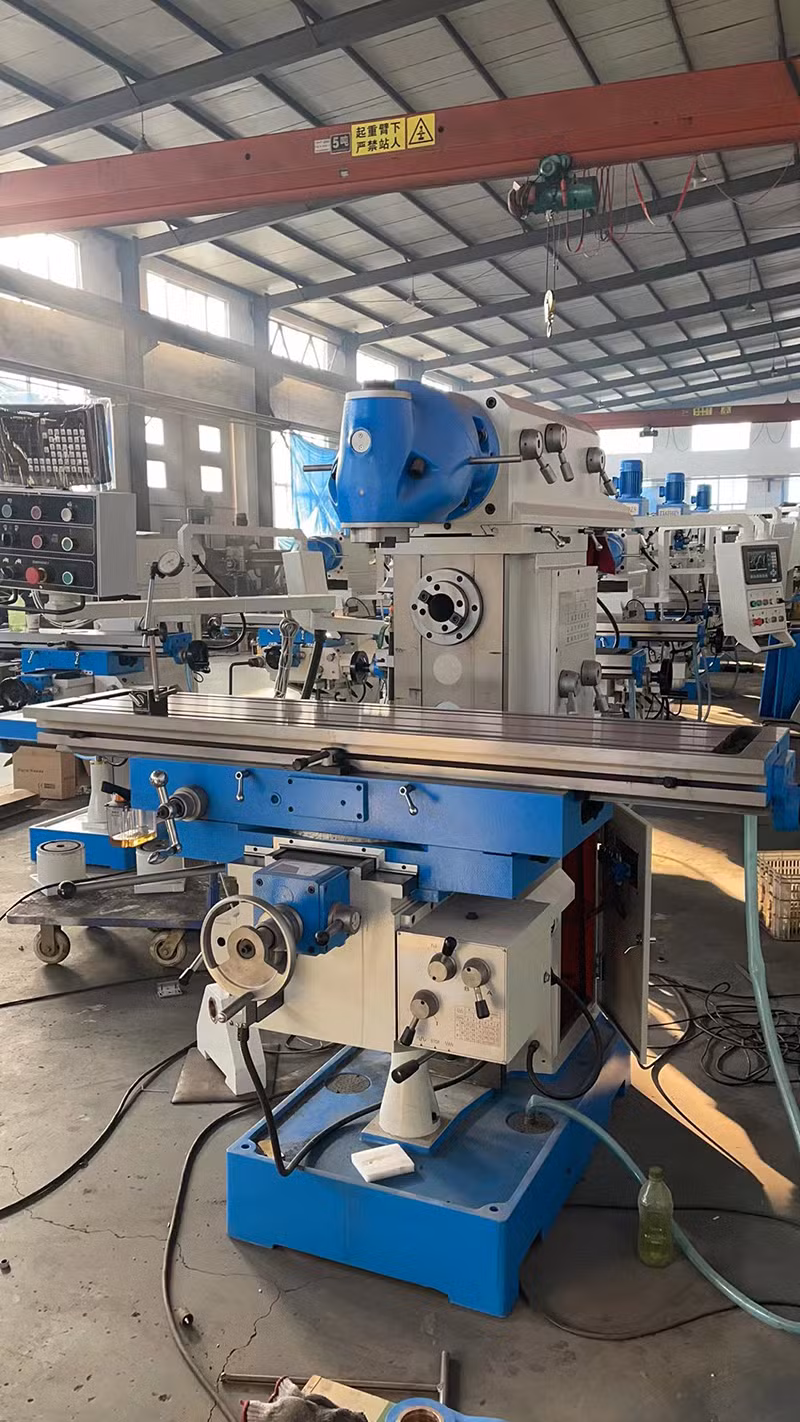

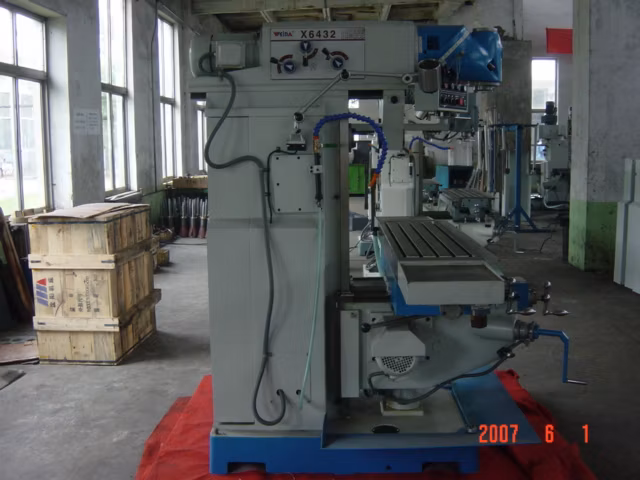

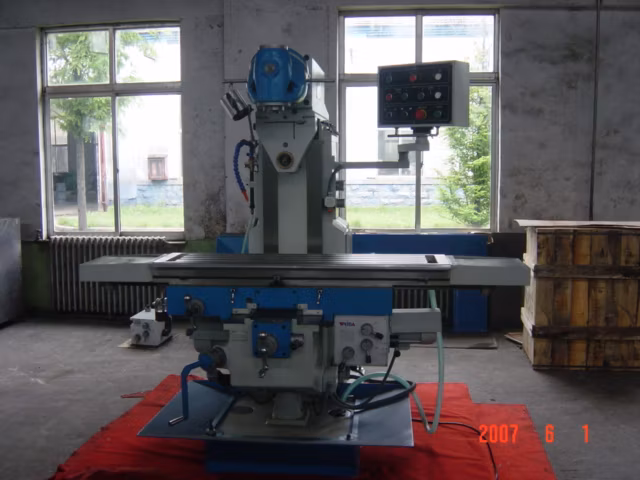

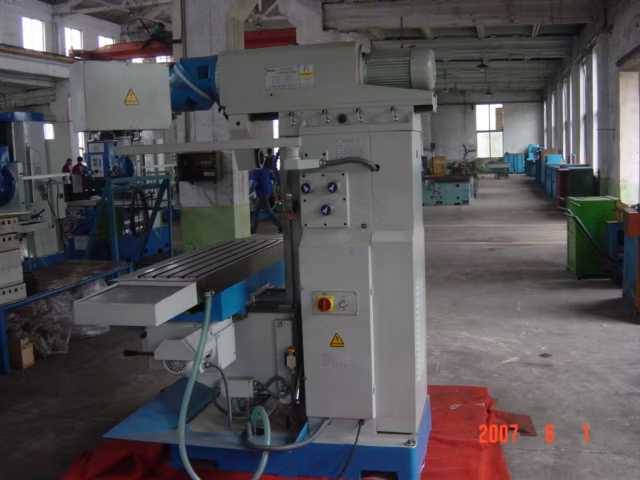

X6436 is a Chinese precision universal swivel head milling machine with CE certification, it can mill any angle surface through front half-sphere by swivelling milling head.
Main Features:
1.The machine is with universal milling head,it can swivel 360 degrees.
2.The table can swivel left and right side 45 degrees.
3.The machine can automatic feed on three axes controlled through one gear box.
4.The ram is movable forward and backward.
5.The table can be extended to 1600mm, and X travl is increased to 1300mm simultaneously.
6.The machine is equipped with operation panel which is convenient for the operator.
X6436 Chinese precision Universal swivel head milling machine:
| specification | unit | X6436 |
| TABLE : | ||
| Table size | mm | 1320x360 |
| 1600X360 | ||
| T slot | no | 5 |
| Size ( Width ) | mm | 14 |
| Centre distance | mm | 95 |
| Max. load of Table | kg | 400 |
| swivel of table | degree | ±45 |
| machining range : | ||
| table Longitudinal travel(manual/auto) | mm | 1000/1300mm |
| table Cross travel (manual/auto) | mm | 290/280 |
| table Vertical travel(manual/auto) | mm | 390 |
| MAIN SPINDLE : | ||
| Spindle taper | ISO50 | |
| spindle speed /step -- Vertical | rpm | 58-1800/12 |
| --Horizontal | rpm | 38-1310/12 |
| swivel angle of swivel head | degree | 360 |
| horizontal spindle axis to table surface | mm | 0-390 |
| horizontal spindle axis to arm bottom | mm | 175 |
| arm travel | mm | 500 |
| FEEDS : | ||
| Longitudinal/cross feed | mm / min | 22-420(X), 22-393(Y) |
| Vertical/step | mm/min | 10-168(Z) |
| Longitudinal/cross rapid speed | mm / min | 1290(X),1205(Y) |
| Rapid Traverse vertical | mm/min | 513(Z) |
| POWER :- | ||
| main motor | kw | 4 |
| (X/Y/Z) feed motor | kw | 1.1KW |
| coolant motor | kw | 90W |
| others | ||
| overall dimension | cm | 198x202x190 |
| N/W,G/W | kg | 2200/2400 |
Standard Accessories:
| Item | Name | Model | Qty |
| 1 | Machine | 1 | |
| 2 | Milling chuck | ISO50 (8 pieces) | 1 |
| 3 | Inner hexagon spanner | 5, 6, 8, 10, 12, 14 | each 1 |
| 4 | Wrench | S21-24, S27-30 | each 1 |
| 6 | Draw bar | M24(vertical, horizontal) | each 1 |
| 7 | Middle-sleeve | 7:24 ISO50/MS4 | 1 |
| 8 | Nut | M16 | 1 |
| 9 | Washer | 24 | 1 |
| 16 | 2 | ||
| 10 | Milling arbor | ISO50-φ27 | each 1 set |
| ISO50-φ32 | |||
| 11 | Shell end milling arbor | 7:24 ISO50-φ32 | 1 |
| 12 | Operation manual | 1 | |
| 13 | Accuracy test list | 1 | |
| 14 | Packing list | 1 |
Optional accessories:
3-Axis SINO DRO
Universal dividing head
Rotary table TSL250
Machine vice
Security of the table
Security of the spindle(simple type)
Security of the spindle(advance type)
We also would like to let you know our warranty about our X6436 Chinese precision Universal swivel head milling machine as following:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
